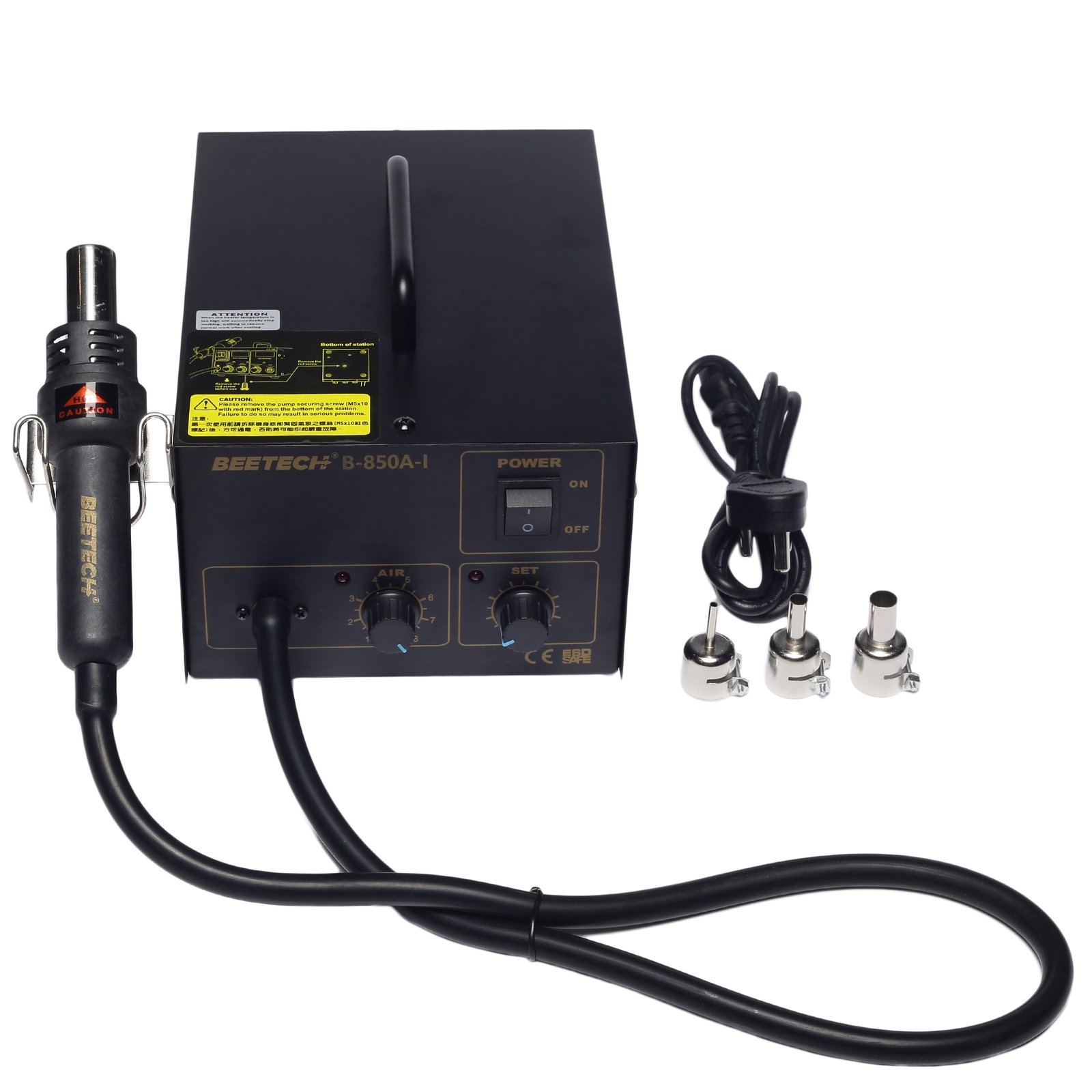

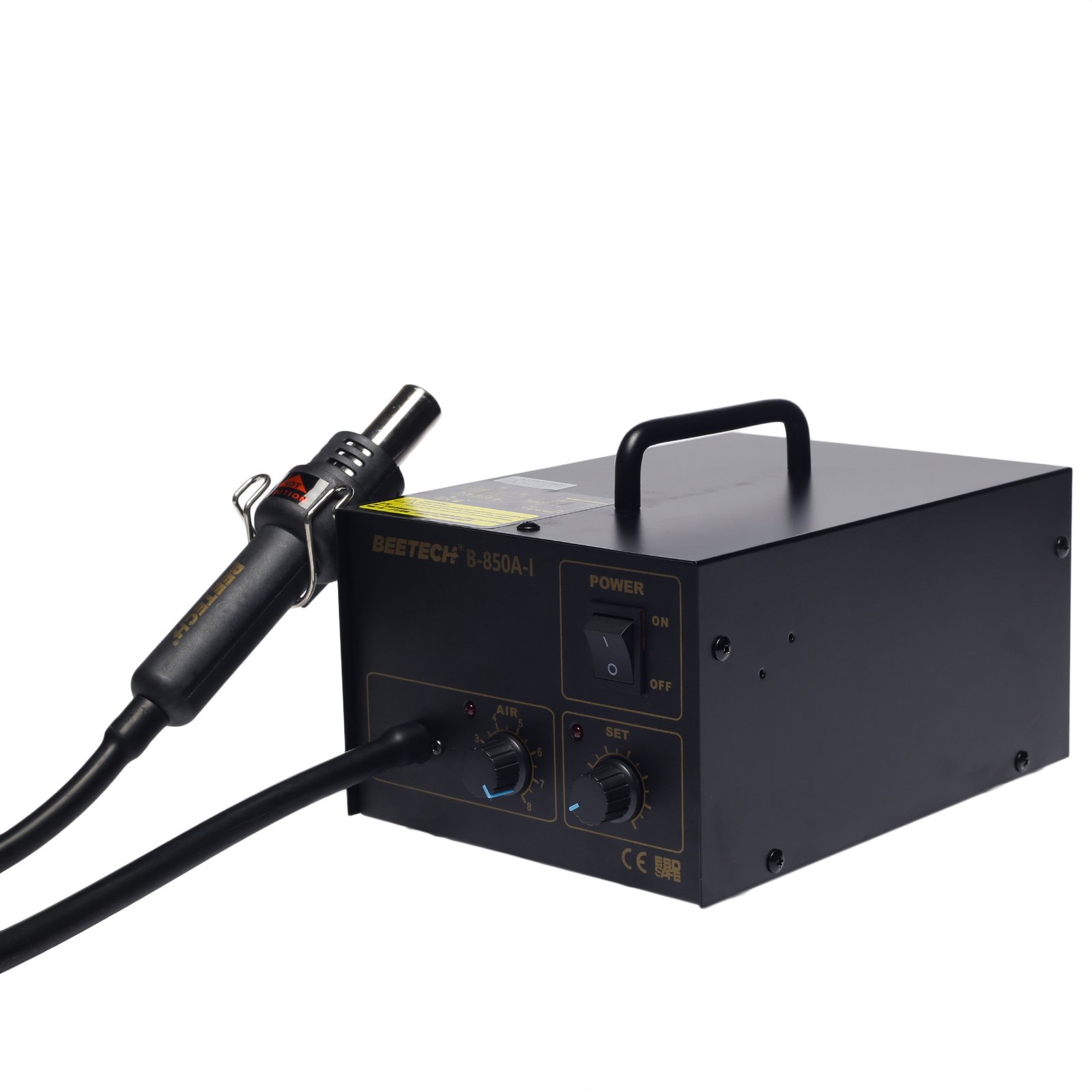

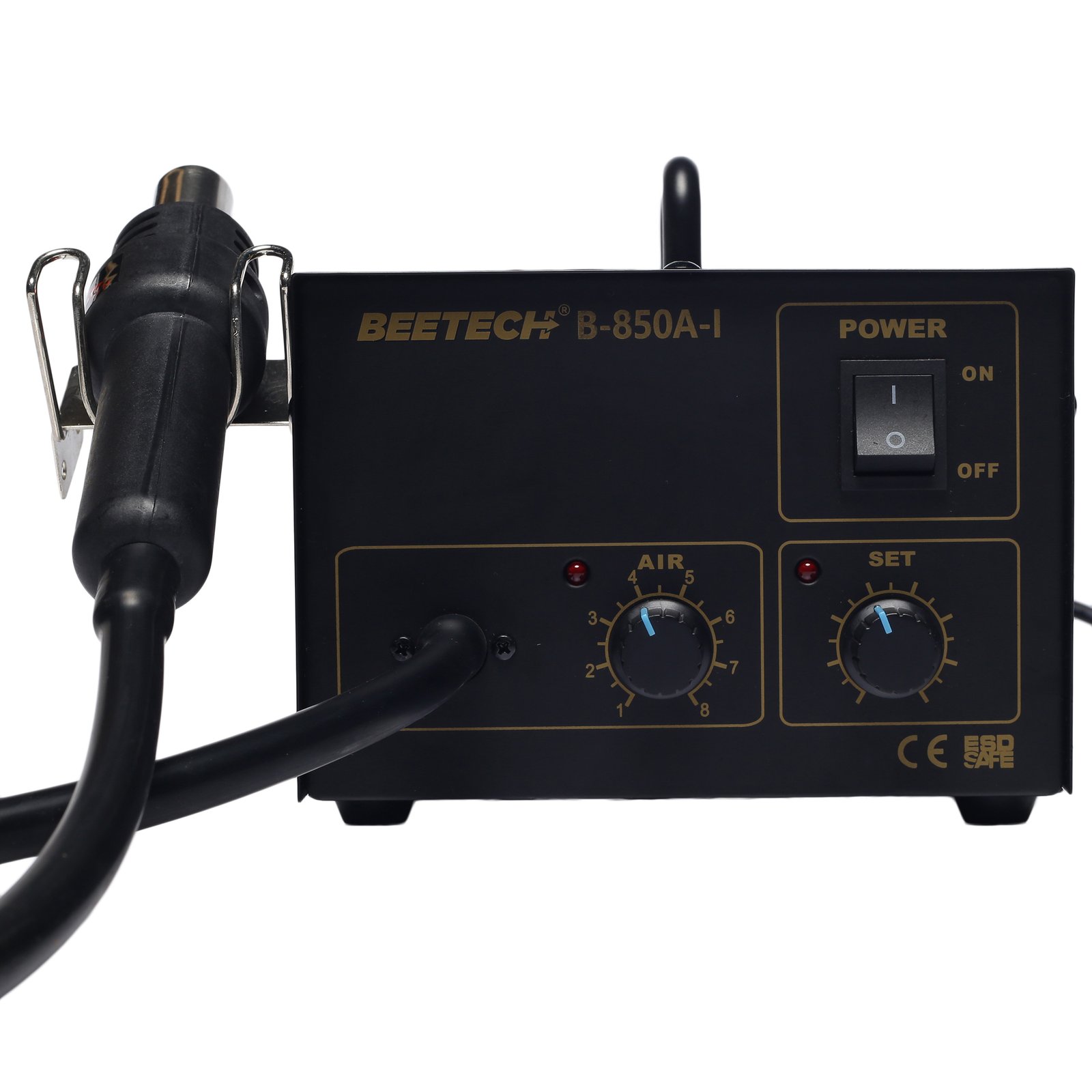

BEETECH SMD REWORK STATION B-850A-I

BEETECH SMD REWORK STATION B-850A-I - Image 3

BEETECH SMD REWORK STATION B-850A-I - Image 4

BEETECH SMD REWORK STATION B-850A-I - Image 5

BEETECH SMD REWORK STATION B-850A-I

Important Specification

Product Details

The 850A uses a thermocouple feedback temperature control technique to regulate output temperature. This devices provides the flexibility to control heat and air flow to the desired level. The closed loop feedback system ensures that the temperature is regulated even after adjusting the airflow. To effectively cool the heater tube, the air pump will continue working for 90s after the unit is switched off.

See More Product Details

Product information

SPECIFICATIONS

1. Input voltage	AC 200V – 240V ± 10% 50Hz
2. Power consumption	700W
3. Airflow type of air pump	Diaphragm type
4. Airflow volume	24L/min(max)
5. Temperature range	100˚C - 450˚C
6. Temperature display	Scale indication
7. Noise	< 45dB
8. Dimensions	330 (L) x 275 (W) x 195 (H) mm
9. Weight	3.6KGS

FEATURES

	• Thermocouple feedback temperature control technique
	• Heat and air flow adjusting function
	• Air pump to ensure effective cooling of heater tube
