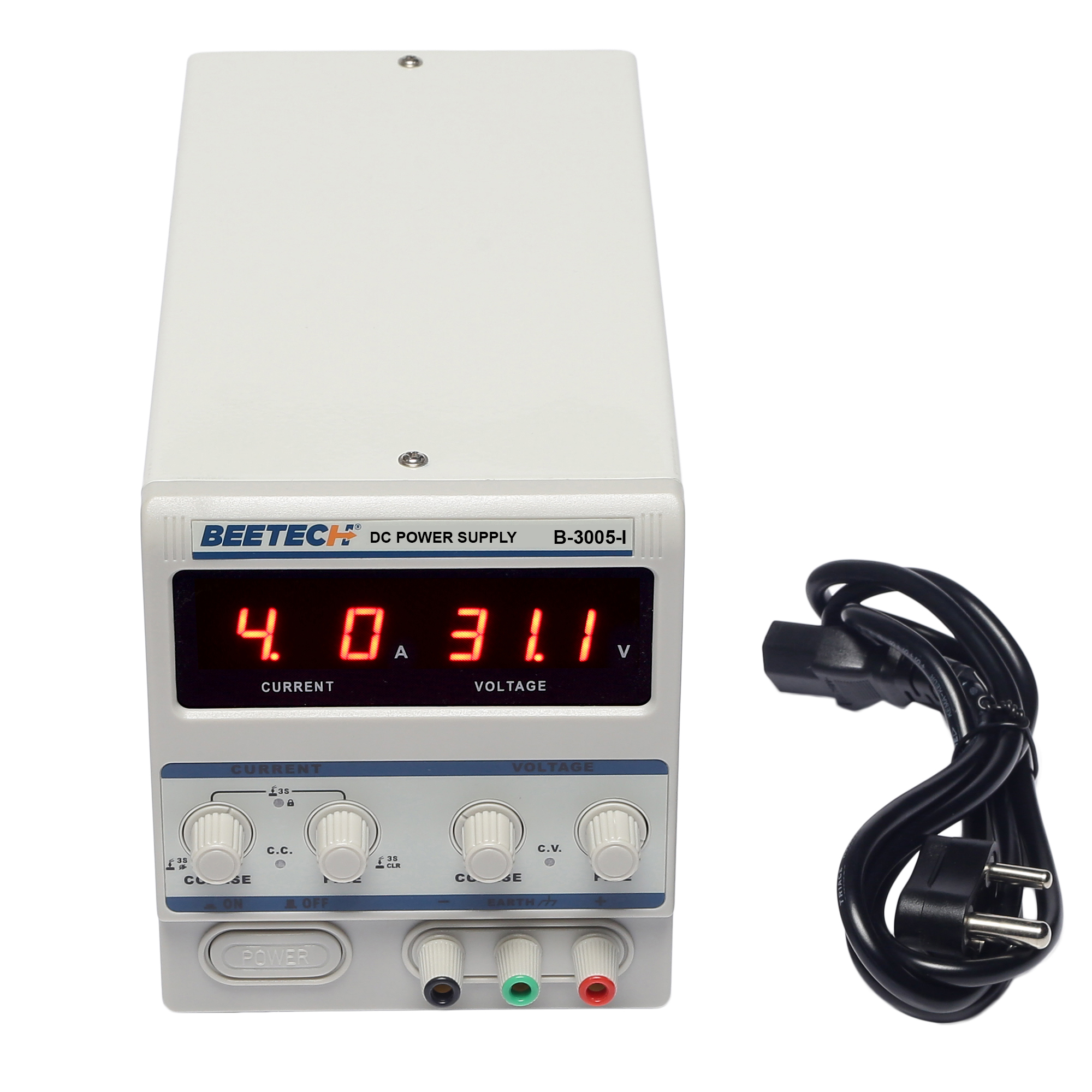

BEETECH POWER SUPPLY B-3005-I

BEETECH POWER SUPPLY B-3005-I

Important Specification

1. Voltage output range

0-30V

2. Current output range

0-5A

3. Current and voltage display model

A means pointer display, D means LED display

4. Display precision

Pointer display: ±2.5% Digital display: ±1% ±1 word

5. Input voltage

AC 220V ±10% (switch to choose) 50/60Hz

6. Operating condition

-10˚C ~ 40˚C, ≤ 90%RH

7. Storage condition

-10˚C ~ 40˚C, ≤ 80%RH

Constant voltage working conditions

1. Voltage stability

≤ 0.01% + 2mV

2. Load stability

≤ 0.01% + 2mV

3. Recovery time

≤ 100µs

4. Ripple and noise

≤ 1mVrms (effective value)

5. Temperature coefficient

≤ 200PPM˚C

Constant current working condition

1. Current stability

≤ 0.2% + 3mA

2. Load stability

≤ 0.2% + 3mA

3. Ripple and noise

≤ 2mArms (effective value)

Weight

4.6KGS

Product Details

The RPS series DC power supply is designed for scientific study, product development, laboratory, junior college and electronic production line. Output voltage and output current between0and rated value are continuously adjustable. They have high precision, high reliability and perfect overload protection circuit. These products are the best choice of auto industry electronic industry, communications industry, digital product, research
institutions and educational institutions. This series DC power supply works on the characteristic of constant voltage/constant current automatic switching type. It can switchover continuously between the constant voltage and constant current state along with the variation of the loads.

See More Product Details

Product information

SPECIFICATIONS

1. Voltage output range

0-30V

2. Current output range

0-5A

3. Current and voltage display model

A means pointer display, D means LED display

4. Display precision

Pointer display: ±2.5% Digital display: ±1% ±1 word

5. Input voltage

AC 220V ±10% (switch to choose) 50/60Hz

6. Operating condition

-10˚C ~ 40˚C, ≤ 90%RH

7. Storage condition

-10˚C ~ 40˚C, ≤ 80%RH

Constant voltage working conditions

1. Voltage stability

≤ 0.01% + 2mV

2. Load stability

≤ 0.01% + 2mV

3. Recovery time

≤ 100µs

4. Ripple and noise

≤ 1mVrms (effective value)

5. Temperature coefficient

≤ 200PPM˚C

Constant current working condition

1. Current stability

≤ 0.2% + 3mA

2. Load stability

≤ 0.2% + 3mA

3. Ripple and noise

≤ 2mArms (effective value)

Weight

4.6KGS

Brand

‎Hty

Power Source

‎Battery Powered

Style

‎Clamp Meter

Item Weight

‎190 Grams

Item dimensions L x W x H

‎20 x 8 x 4.5 Centimeters

Specification Met

‎CE, RoHS

Measurement Type

‎Clamp Meter, Multimeter

Manufacturer

‎SHREYANS ENTERPRISES, 002, 9th Avenue Business Park, Chamrajpet 5th Main Road, Bangalore, India

Country of Origin

‎India

Model number

‎B-6010

Number of Memory Sticks

‎6010

Item Weight

‎190 g

Product Dimensions

‎20 x 8 x 4.5 cm; 190 g

Item model number

‎B-6010

Item Height

‎4.5 Centimeters

Item Width

‎8 Centimeters

Included Components

‎Clampmeter and Testing Leads with Manual User guide

FEATURES

• Current preset, current limiting protection

• Automatic switching of constant voltage / constant current

• Fine adjustment knob of voltage / current

• Three-digit display of voltage and current, with display accuracy 0.1V 0.01A

• Low noise (Temperature controlled fan is adopted, and it starts automatically to dissipate heat when internal temperature is greater than 50°C

• 3 Digit LED Display

ABOUT THE PRODUCT
