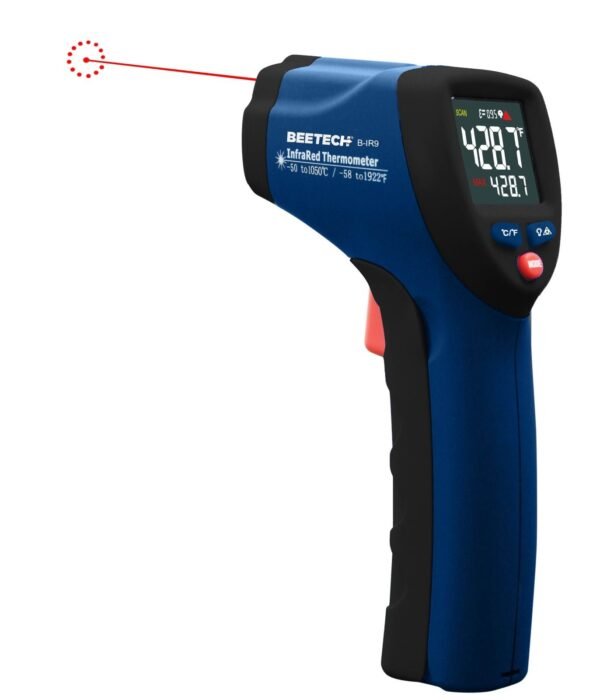

BEETECH INFRARED THERMOMETER B-IR9

Important Specification

Product Details

Beetech B-IR9 provides fast, easy and accurate temperature readings. It adopts 13-dot circular laser measuring technology for most accurate measurement.

With the non-contact (infrared) technology, it can be used to measure the surface temperature of hard-to-reach objects.

IR thermometers are more common in an industrial environment as well as in several emergencies where temperature measurement through direct contact with the subject is often difficult or unsafe.

See More Product Details

Product information

SPECIFICATIONS

1. Temperature Range	-50°~1050 °C / -58°~1922 °F
2. Accuracy	-50°C ~ 0°C / -58°F ~ 32°F ; ±4°C / 9°F / >0°C / 32°F ; ±2% or reading ±2°C / 4°F
3. Emissivity	0.1 ~1.0
4. Optical Resolution	Distance:Spot= 30:1
5. Response Time and Wavelength	<= 250 ms, 8 ~14 um
6. Resolution	0.1°C / 0.1°F < 1000 ; 1°C / 1°F ≥ 1000
7.Polarity Display Auto display	“-” indicates negative, positive with no indication
8. Diode Laser Output	< 1mW, 630 ~ 670nm, class 2 (II)
9. Auto Power Off	Auto shuts off after 20 seconds inactivity
10. Temperature Conditions Operating	0 ~ 50°C/32~122°F
11. Temperature Conditions Storage	-20 ~70°C / -4 ~158°F
12. Humidity Conditions Operating	10 ~ 95% RH
13. Humidity Conditions Storage	< 80% RH
14. Dimensions / Weight	155 X 100 X 44 mm / 172g
15. Accessories	User manual, 9V Battery with Box packing

APPLICATION

Widely Used in	Food Industry
	Safety and Fire inspection
	Plastic molding
	Asphalt, Marine
	Printing ink and dryer temperature
	Diesel and Fleet maintenance
	Process Monitoring
	Preventive maintenance
	Electrical Application
	Quality Assurance
