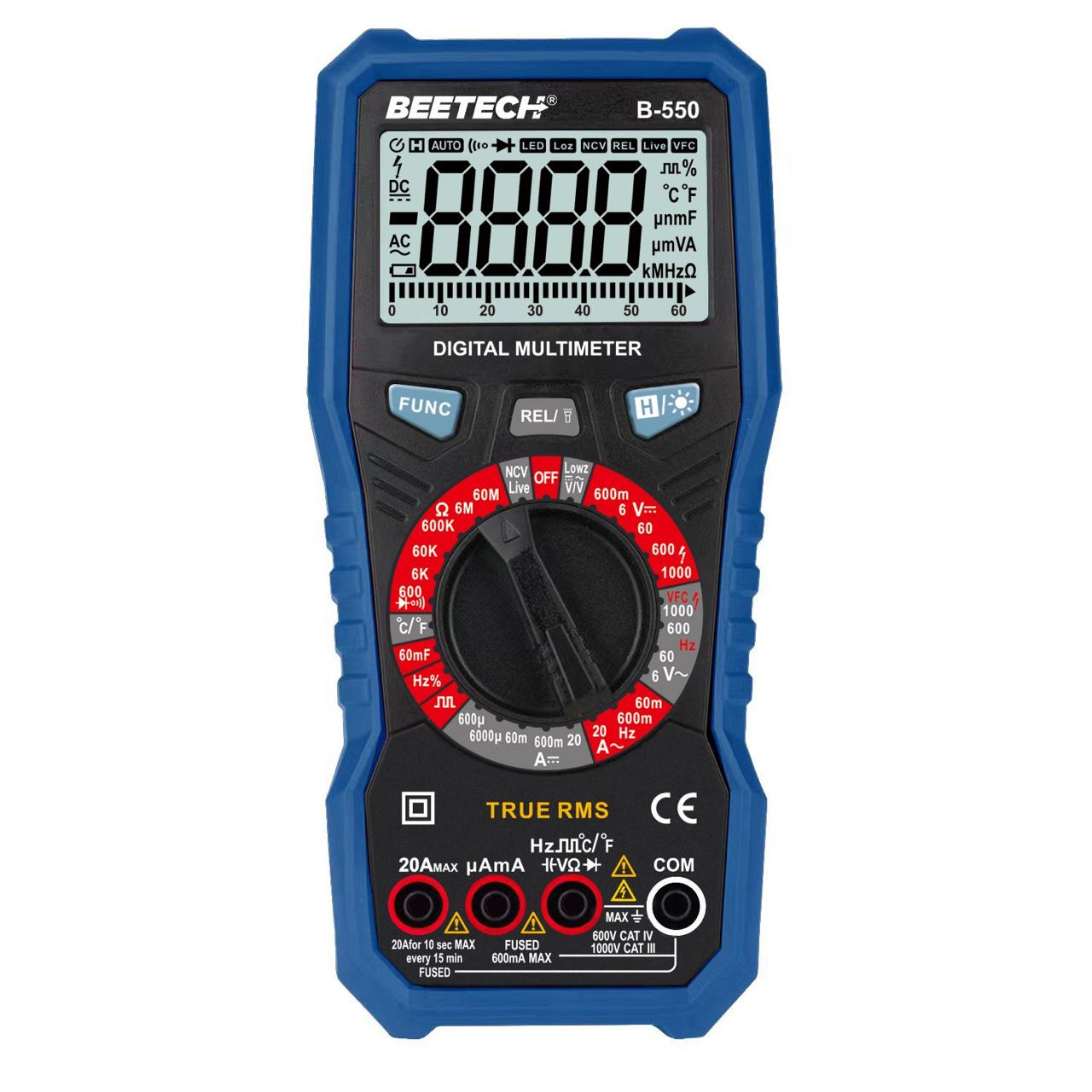

BEETECH DIGITAL MULTIMETER B-550

Important Specification

1. DC VOLTAGE

Range : 600mV – 1000V

Resolution : 0.1mV – 1V

Accuracy : ±(0.5%+2d) / ±(0.7%+10d)

Input impedance：10 MΩ

Max. input voltage: mV range at 250V DC or 250V AC RMS, other ranges at 1000V DC

2. AC VOLTAGE

Range : 6V – 1000V

Resolution : 0.001V – 1V

Accuracy : ±(0.8%+3d) / ±(1.0%+5d)

Input impedance：10MΩ

Frequency response: 40-1000Hz

Max. input voltage: 1000 VDC or AC RMS.

3. AC CURRENT

Range : 60mA – 20A

Resolution : 0.01mA – 0.01A

Accuracy : ±(1.5%+5d) / ±(1.0%+10d)

Max. current: µA mA jack: FF600mA/1000V fuse, 20A Max Jack: FF10A/1000V fuse

Frequency response: 40-1000Hz

4. DC CURRENT

Range : 600uA – 20A

Resolution : 0.1uA – 0.01A

Accuracy : ±(1.0%+5d) / ±(0.8%+5d) / ±(1.0%+10d)

Max. current: µA mA jack: FF600mA/1000V fuse, 20A Max Jack: FF10A/1000V fuse

5.RESISTANCE

Range : 600Ω – 60MΩ

Resolution : 0.1Ω – 0.01MΩ

Accuracy : ±(0.8%+3d) / ±(1.0%+25d)

Overload protection: 250V DC or AC RMS

Measured resistance value = displayed value – test lead circuit short value

6. FREQUENCY

Range : 1Hz～10MHz

Resolution : 0.001Hz～0.01MHz

Accuracy : ±(0.1%+2d)

Overload protection: 250VDC or AC RMS

7. CAPACITANCE

Range : 6mF～60mF

Resolution : 0.001mF～0.01mF

Accuracy : ±(5%+25d)

Overload protection: 250VDC or AC RMS

8. LOWZ DCV & ACV

Range : 600V

Resolution : 0.1V

Accuracy : Auto identify, ±(0.5%+10d), Min .DC identify voltage > 1.0V

Input impedance: 900kΩ

Max. input voltage：600VDC or AC RMS

Product Details

BEETECH B-550 multimeter is stable, highly reliable and with excellent accurate A/D converter as the core for large scale integrated circuit to ensure accurate measurement of AC/DC Voltage, AC/DC current, Resistance, Capacitance, Frequency, Diode, Continuity and Temperature. All these features make B-550 multimeter to be an ideal tool for field application, laboratory, factory, hobbyist, as well as household applications. To fully utilize this range multimeters, please keep this manual for reference carefully.

See More Product Details

Product information

SPECIFICATIONS

1. DC VOLTAGE

Range : 600mV – 1000V

Resolution : 0.1mV – 1V

Accuracy : ±(0.5%+2d) / ±(0.7%+10d)

Input impedance：10 MΩ

Max. input voltage: mV range at 250V DC or 250V AC RMS, other ranges at 1000V DC

2. AC VOLTAGE

Range : 6V – 1000V

Resolution : 0.001V – 1V

Accuracy : ±(0.8%+3d) / ±(1.0%+5d)

Input impedance：10MΩ

Frequency response: 40-1000Hz

Max. input voltage: 1000 VDC or AC RMS.

3. AC CURRENT

Range : 60mA – 20A

Resolution : 0.01mA – 0.01A

Accuracy : ±(1.5%+5d) / ±(1.0%+10d)

Max. current: µA mA jack: FF600mA/1000V fuse, 20A Max Jack: FF10A/1000V fuse

Frequency response: 40-1000Hz

4. DC CURRENT

Range : 600uA – 20A

Resolution : 0.1uA – 0.01A

Accuracy : ±(1.0%+5d) / ±(0.8%+5d) / ±(1.0%+10d)

Max. current: µA mA jack: FF600mA/1000V fuse, 20A Max Jack: FF10A/1000V fuse

5.RESISTANCE

Range : 600Ω – 60MΩ

Resolution : 0.1Ω – 0.01MΩ

Accuracy : ±(0.8%+3d) / ±(1.0%+25d)

Overload protection: 250V DC or AC RMS

Measured resistance value = displayed value – test lead circuit short value

6. FREQUENCY

Range : 1Hz～10MHz

Resolution : 0.001Hz～0.01MHz

Accuracy : ±(0.1%+2d)

Overload protection: 250VDC or AC RMS

7. CAPACITANCE

Range : 6mF～60mF

Resolution : 0.001mF～0.01mF

Accuracy : ±(5%+25d)

Overload protection: 250VDC or AC RMS

8. LOWZ DCV & ACV

Range : 600V

Resolution : 0.1V

Accuracy : Auto identify, ±(0.5%+10d), Min .DC identify voltage > 1.0V

Input impedance: 900kΩ

Max. input voltage：600VDC or AC RMS

Brand

‎Hty

Power Source

‎Battery Powered

Style

‎Clamp Meter

Item Weight

‎190 Grams

Item dimensions L x W x H

‎20 x 8 x 4.5 Centimeters

Specification Met

‎CE, RoHS

Measurement Type

‎Clamp Meter, Multimeter

Manufacturer

‎SHREYANS ENTERPRISES, 002, 9th Avenue Business Park, Chamrajpet 5th Main Road, Bangalore, India

Country of Origin

‎India

Model number

‎B-6010

Number of Memory Sticks

‎6010

Item Weight

‎190 g

Product Dimensions

‎20 x 8 x 4.5 cm; 190 g

Item model number

‎B-6010

Item Height

‎4.5 Centimeters

Item Width

‎8 Centimeters

Included Components

‎Clampmeter and Testing Leads with Manual User guide

FEATURES

• 6000 Counts

• 3 5/6 Digits

• 1000V AC/DC

• 20A AC/DC

• TRMS

• Manual Ranging

• Overload Protection

• VFC / LoZ

• NCV

• LIVE

• CAT IV 600V , CAT III 1000V
