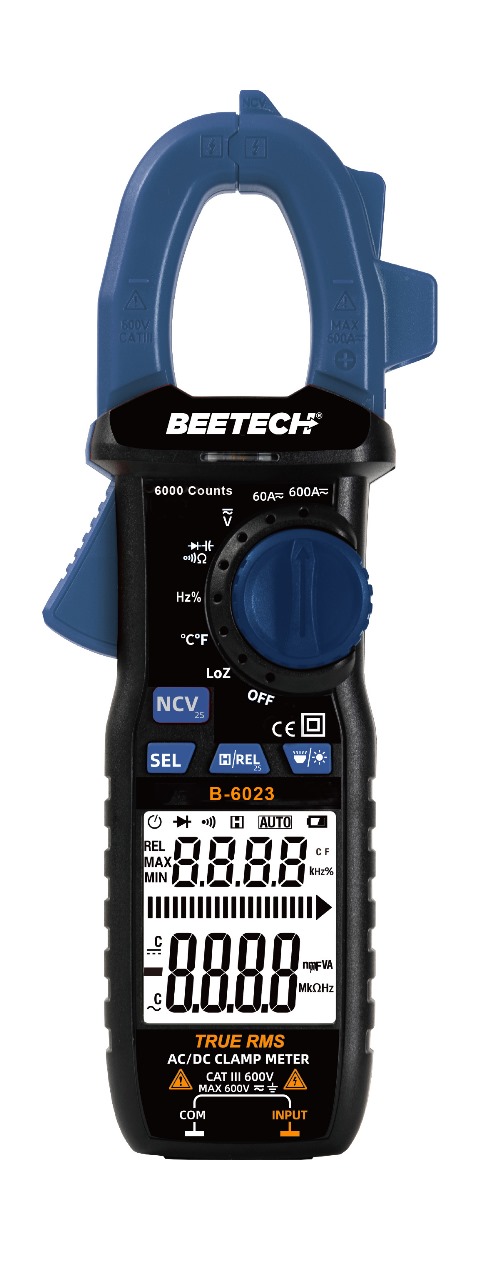

BEETECH CLAMPMETER B-6023

Important Specification

1. DC VOLTAGE

Range : 600mV – 600V

Accuracy : ±(1.0% + 2 digits) / ±(0.8% + 3 digits)

Resolution : 0.1mV – 0.11V

Response average input impedance

10MΩ

Max. Input Voltage

600V DC

2. AC VOLTAGE

Range : 6V – 600V

Accuracy : ±(0.8% + 3 digits)

Resolution : 0.001V – 0.1V

Input Resistance

10MΩ

Frequency range

40Hz – 400Hz

Max. Input Voltage

600V DC (effective value)

3. AC CURRENT

Range : 60A – 600A

Accuracy : ±(3.0% + 6 digits)

Resolution : 0.1A

Frequency Range

40Hz ~ 400Hz Response: Avg. Value

Max. Input Current

600A AC

4. DC CURRENT

Range : 60A – 600A

Accuracy : ±(2.5% + 8 digits)

Resolution : 0.1A

Max. Input Current

600A DC

5. RESISTANCE

Range : 600Ω – 60MΩ

Accuracy : ±(0.8% + 3 digits) / ±(1.2% + 3 digits)

Resolution : 0.1Ω

Overload Protection

250V DC or AC (valid value)

Open Circuit Voltage

Approx. 0.4V

6. CAPACITANCE

Range : 6nF-60mF

Accuracy : ± (4.5%+5 digits)

Resolution : 0.1nF – 0.01mF

Overload Protection

250V DC or AC (valid value)

7.FREQUENCY

Range : 10Hz – 10Mhz

Accuracy : ±(0.5% + 2 digits)

Resolution : 0.001Hz – 0.001Mhz

8. DIODE TEST

00.1V Display approximate for ward voltage of Diode

• Forward DC Current is about 1mA.

• Reverse DC voltage is about 3.3V

• Overload Protection:250V DC or AC (valid value)

9. CONINUITY TEST

0.1Ω Built-in buzzer will be sounded if resistance is less than 50Ω

• Overload Protection:250V DC or AC (valid value)

10. TEMPERATURE

Range : -50°C ~ 1300°C / -58°F ~ 2372°F

Accuracy : 土(1% + 3 digits)

Resolution : 1°C / 1°F

Product Details

This 3 3/4 digits display and 6000 counts Clampmeter is a stable and battery powered meter. It adopts a big LCD screen making the readings clear with backlight display. It can be used to test DC voltage, AC voltage, AC current, DC current, resistance, capacitance, temperature, diode, continuity and NCV. It has a micro smart IC and dual integral AD transformer as the core and comes with full range overload protection circuit along with shock proof protection. This instrument is designed and manufactured with safety standards of IEC61010, IEC61010-2-032, dual insulation CAT III 600V and pollution class 2. It is an ideal tool for industries, radio technology, educational institutions, electricians, engineers, technicians, manufacturers, and for household use. This product comes with one user manual, a pair of test leads, one temperature probe and 3 x 1.5V / AAA battery.

See More Product Details

Product information

1. DC VOLTAGE

Range : 600mV – 600V

Accuracy : ±(1.0% + 2 digits) / ±(0.8% + 3 digits)

Resolution : 0.1mV – 0.11V

Response average input impedance

10MΩ

Max. Input Voltage

600V DC

2. AC VOLTAGE

Range : 6V – 600V

Accuracy : ±(0.8% + 3 digits)

Resolution : 0.001V – 0.1V

Input Resistance

10MΩ

Frequency range

40Hz – 400Hz

Max. Input Voltage

600V DC (effective value)

3. AC CURRENT

Range : 60A – 600A

Accuracy : ±(3.0% + 6 digits)

Resolution : 0.1A

Frequency Range

40Hz ~ 400Hz Response: Avg. Value

Max. Input Current

600A AC

4. DC CURRENT

Range : 60A – 600A

Accuracy : ±(2.5% + 8 digits)

Resolution : 0.1A

Max. Input Current

600A DC

5. RESISTANCE

Range : 600Ω – 60MΩ

Accuracy : ±(0.8% + 3 digits) / ±(1.2% + 3 digits)

Resolution : 0.1Ω

Overload Protection

250V DC or AC (valid value)

Open Circuit Voltage

Approx. 0.4V

6. CAPACITANCE

Range : 6nF-60mF

Accuracy : ± (4.5%+5 digits)

Resolution : 0.1nF – 0.01mF

Overload Protection

250V DC or AC (valid value)

7.FREQUENCY

Range : 10Hz – 10Mhz

Accuracy : ±(0.5% + 2 digits)

Resolution : 0.001Hz – 0.001Mhz

8. DIODE TEST

00.1V Display approximate for ward voltage of Diode

• Forward DC Current is about 1mA.

• Reverse DC voltage is about 3.3V

• Overload Protection:250V DC or AC (valid value)

9. CONINUITY TEST

0.1Ω Built-in buzzer will be sounded if resistance is less than 50Ω

• Overload Protection:250V DC or AC (valid value)

10. TEMPERATURE

Range : -50°C ~ 1300°C / -58°F ~ 2372°F

Accuracy : 土(1% + 3 digits)

Resolution : 1°C / 1°F

Brand

‎Hty

Power Source

‎Battery Powered

Style

‎Clamp Meter

Item Weight

‎190 Grams

Item dimensions L x W x H

‎20 x 8 x 4.5 Centimeters

Specification Met

‎CE, RoHS

Measurement Type

‎Clamp Meter, Multimeter

Manufacturer

‎SHREYANS ENTERPRISES, 002, 9th Avenue Business Park, Chamrajpet 5th Main Road, Bangalore, India

Country of Origin

‎India

Model number

‎B-6010

Number of Memory Sticks

‎6010

Item Weight

‎190 g

Product Dimensions

‎20 x 8 x 4.5 cm; 190 g

Item model number

‎B-6010

Item Height

‎4.5 Centimeters

Item Width

‎8 Centimeters

Included Components

‎Clampmeter and Testing Leads with Manual User guide

• Display: LCD

• 6000 Counts

• 3 5/6 Digits

• AC & DC Voltage

• AC & DC Current

• True-RMS

• Resistance

• Capacitance

• Frequency

• Temperature

• Jaw Open Size: 30mm

• NCV

• Diode Test

• Continuity Buzzer

• Overload Protection

• Shock Proof Protection

• Input Impedence

• Backlight

• Torch

• Auto Power Off

• Low Battery Display
