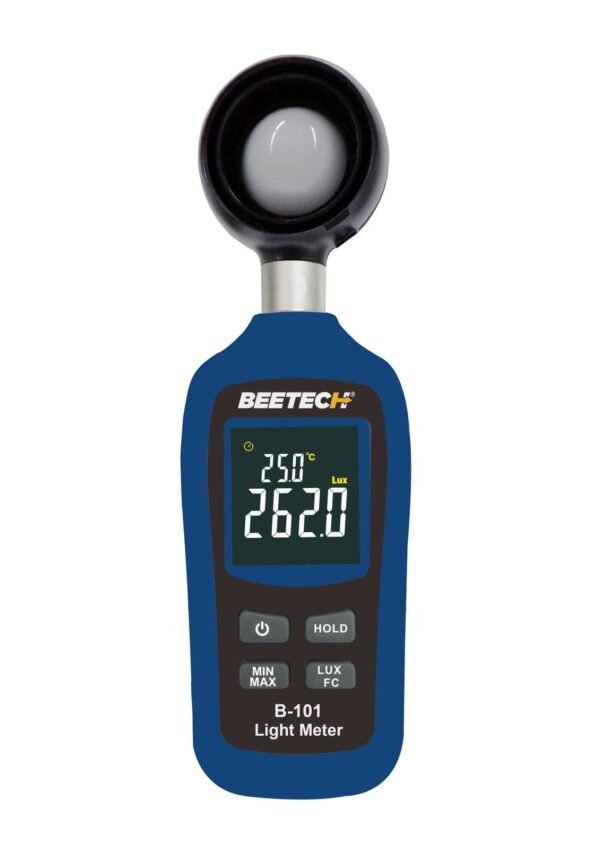

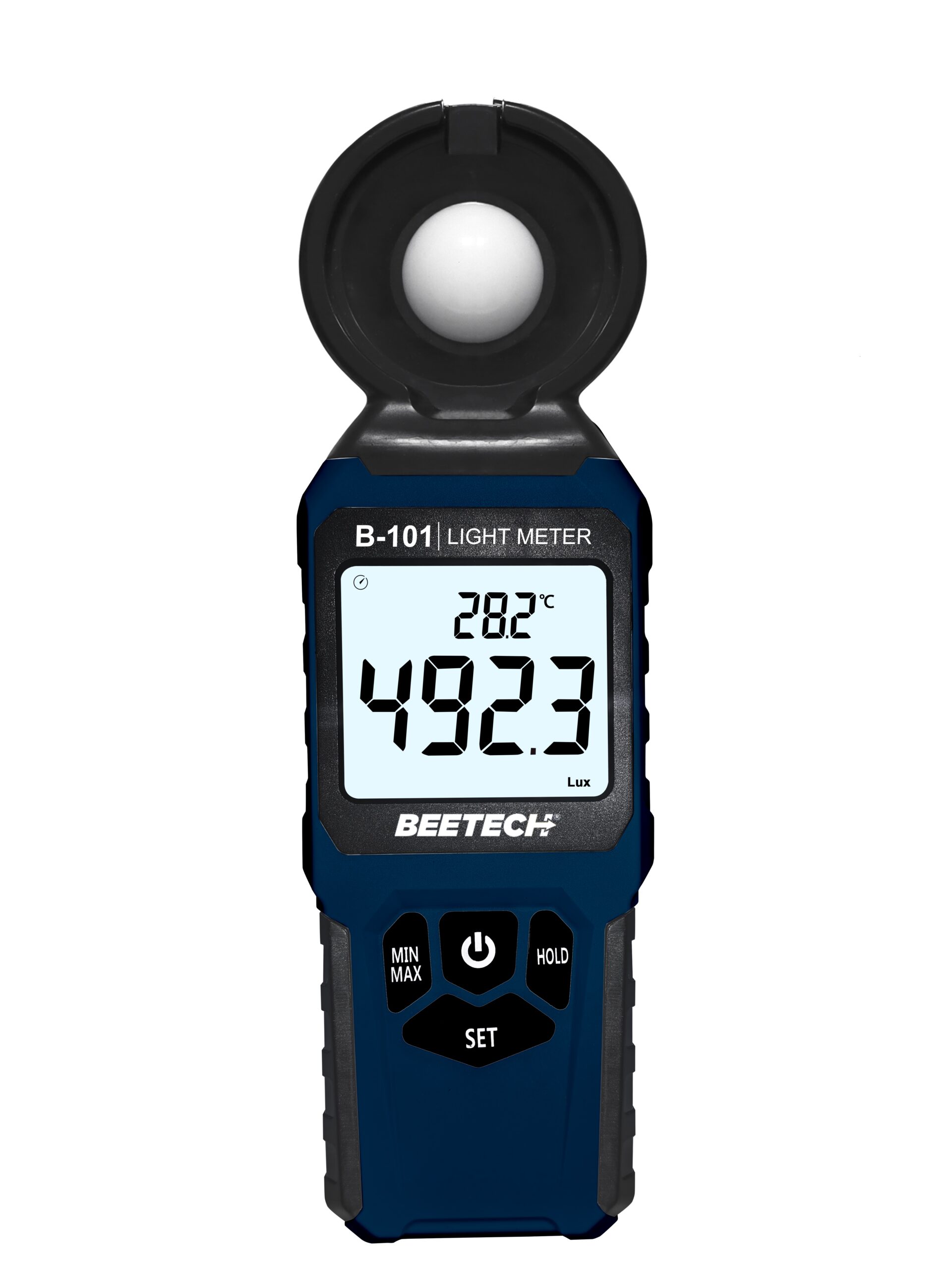

BEETECH LUX METER B-101

Important Specification

1. Display

4 Digits color LCD display

2. Measuring Range

0 Lux ~ 2,00,000 Lux / 0 Fc ~ 20,000 Fc (Foot Candles)

3. Accuracy

±3% rdg±8d (<10,000 Lux) ; ±4% rdg±10d (>10,000 Lux)

4.Temperature Range

-20 ~ 70°C / 4°F ~ 158°F | Temperature Accuracy : ±1.5°C / 2.7°F

5. Spectral Response

CIE photopic (CIE Human Eye Response Curve)

6.Spectral Accuracy

CIE Vλfunction (f1’ ≤ 6% f2’ ≤ 2%)

7.Over Range Indication

LCD Display “-OL-” or “-LO”

8. Sampling Rate

2 Times / Second

9. Photo Detector

Silicon photo-diode with spectral response filter

10. Lux Resolution

<1000 : 0.1 ; > 1000 : 1

11.Temperature Resolution

0.1

12.Operating Conditions

-20°C ~ 60°C, -4°F ~ 140°F, 10%RH ~ 90%RH

13.Storage Conditions

-20°C ~ 60°C, -4°F ~ 140°F, 10%RH ~ 75%RH

14. Power Supply

3*1.5V “AAA” batteries

15. Battery Life

60 Hours

Product Details

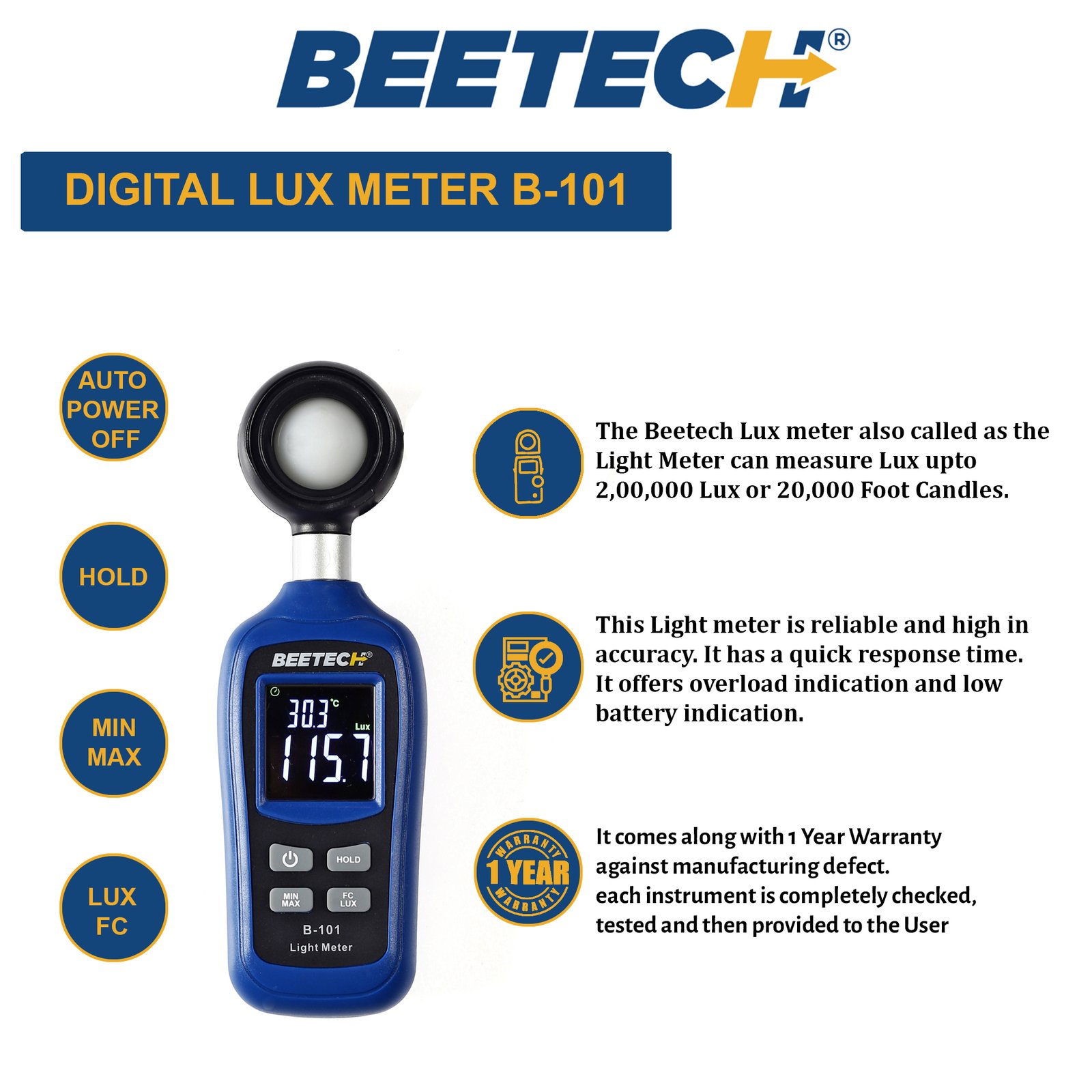

The Beetech Lux Meter also called as the Light Meter can measure Lux upto 2,00,000 Lux or 20,000 Foot Candles.

This Light meter is reliable and high in accuracy. It has a quick response time. It offers overload indication and Low Battery Indication.

It comes along with 1 Year Warranty against manufacturing defect. Eachinstrument is completely checked, tested and then provided to the user.

See More Product Details

Product information

SPECIFICATIONS

1. Display

4 Digits color LCD display

2. Measuring Range

0 Lux ~ 2,00,000 Lux / 0 Fc ~ 20,000 Fc (Foot Candles)

3. Accuracy

±3% rdg±8d (<10,000 Lux) ; ±4% rdg±10d (>10,000 Lux)

4.Temperature Range

-20 ~ 70°C / 4°F ~ 158°F | Temperature Accuracy : ±1.5°C / 2.7°F

5. Spectral Response

CIE photopic (CIE Human Eye Response Curve)

6.Spectral Accuracy

CIE Vλfunction (f1’ ≤ 6% f2’ ≤ 2%)

7.Over Range Indication

LCD Display “-OL-” or “-LO”

8. Sampling Rate

2 Times / Second

9. Photo Detector

Silicon photo-diode with spectral response filter

10. Lux Resolution

<1000 : 0.1 ; > 1000 : 1

11.Temperature Resolution

0.1

12.Operating Conditions

-20°C ~ 60°C, -4°F ~ 140°F, 10%RH ~ 90%RH

13.Storage Conditions

-20°C ~ 60°C, -4°F ~ 140°F, 10%RH ~ 75%RH

14. Power Supply

3*1.5V “AAA” batteries

15. Battery Life

60 Hours

Brand

‎Hty

Power Source

‎Battery Powered

Style

‎Clamp Meter

Item Weight

‎190 Grams

Item dimensions L x W x H

‎20 x 8 x 4.5 Centimeters

Specification Met

‎CE, RoHS

Measurement Type

‎Clamp Meter, Multimeter

Manufacturer

‎SHREYANS ENTERPRISES, 002, 9th Avenue Business Park, Chamrajpet 5th Main Road, Bangalore, India

Country of Origin

‎India

Model number

‎B-6010

Number of Memory Sticks

‎6010

Item Weight

‎190 g

Product Dimensions

‎20 x 8 x 4.5 cm; 190 g

Item model number

‎B-6010

Item Height

‎4.5 Centimeters

Item Width

‎8 Centimeters

Included Components

‎Clampmeter and Testing Leads with Manual User guide

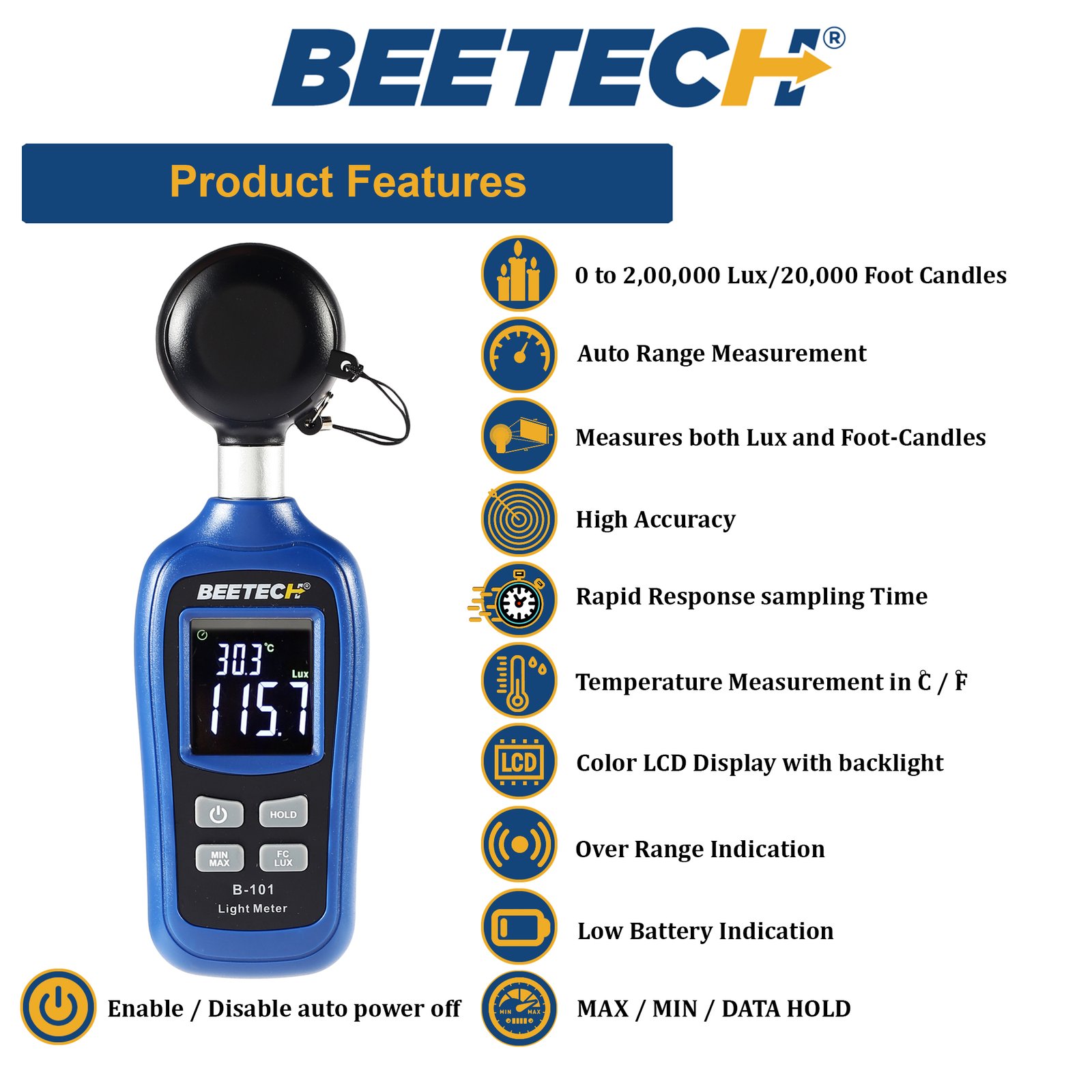

FEATURES

1.

0 to 2,00,000 Lux / 20,000 Foot Candles

2.

Auto Range Measurement

3.

Measures both Lux and Foot-Candles

4.

High Accuracy

5.

Rapid Response Sampling Time

6.

Temperature Measurement in °C / °F

7.

Color LCD Display with backlight

8.

Over Range Indication

9.

Low Battery Indication

10.

MAX / MIN / DATA HOLD

11.

Enable / Disable auto power off

• 0 to 2,00,000 Lux / 20,000 Foot
Candles
• Auto Range Measurement
• Measures both Lux and Foot-Candles
• High Accuracy
• Rapid Response Sampling Time
• Temperature Measurement in °C / °F
• Color LCD Display with backlight
• Over Range Indication
• Low Battery Indication
• MAX / MIN / DATA HOLD
• Enable / Disable auto power off
