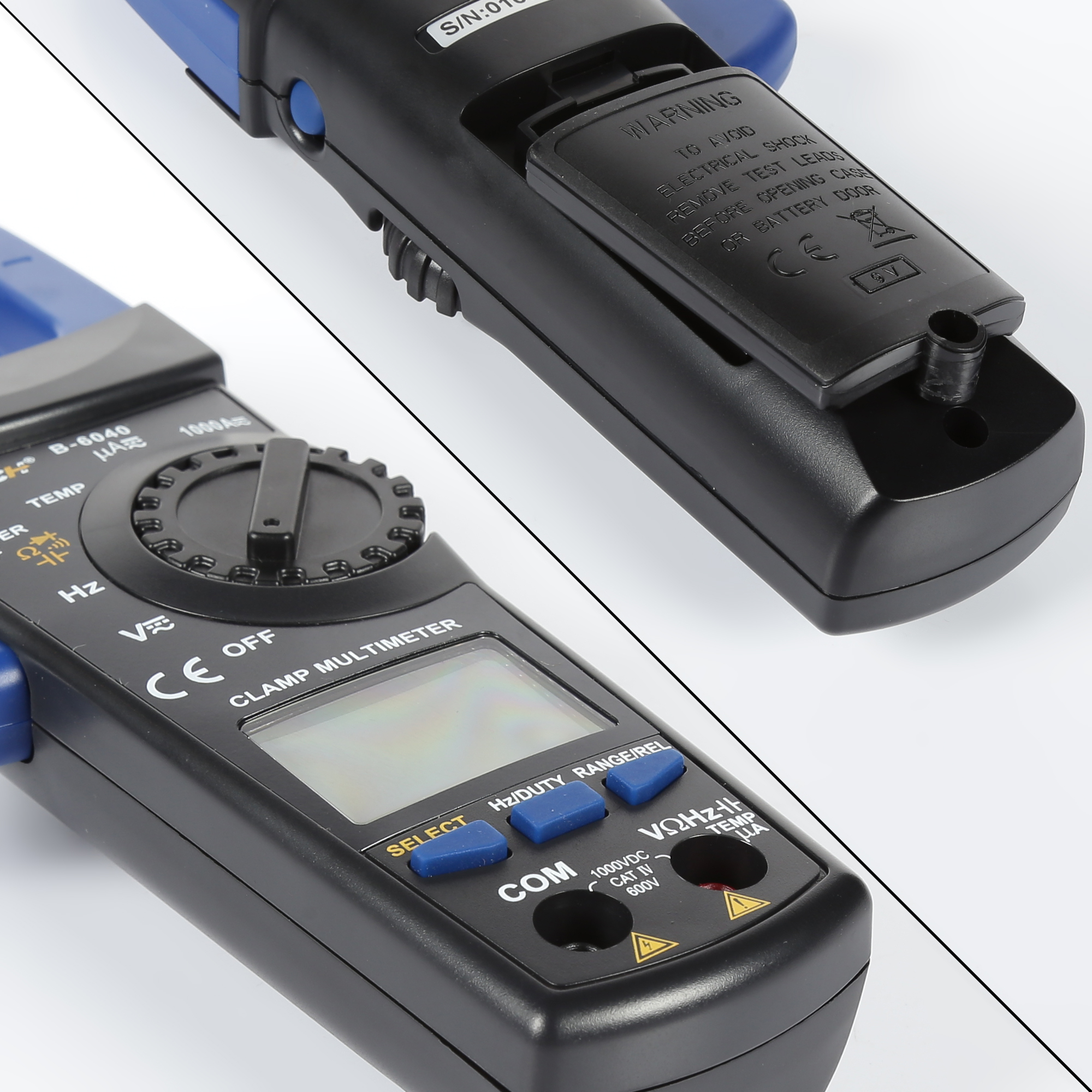

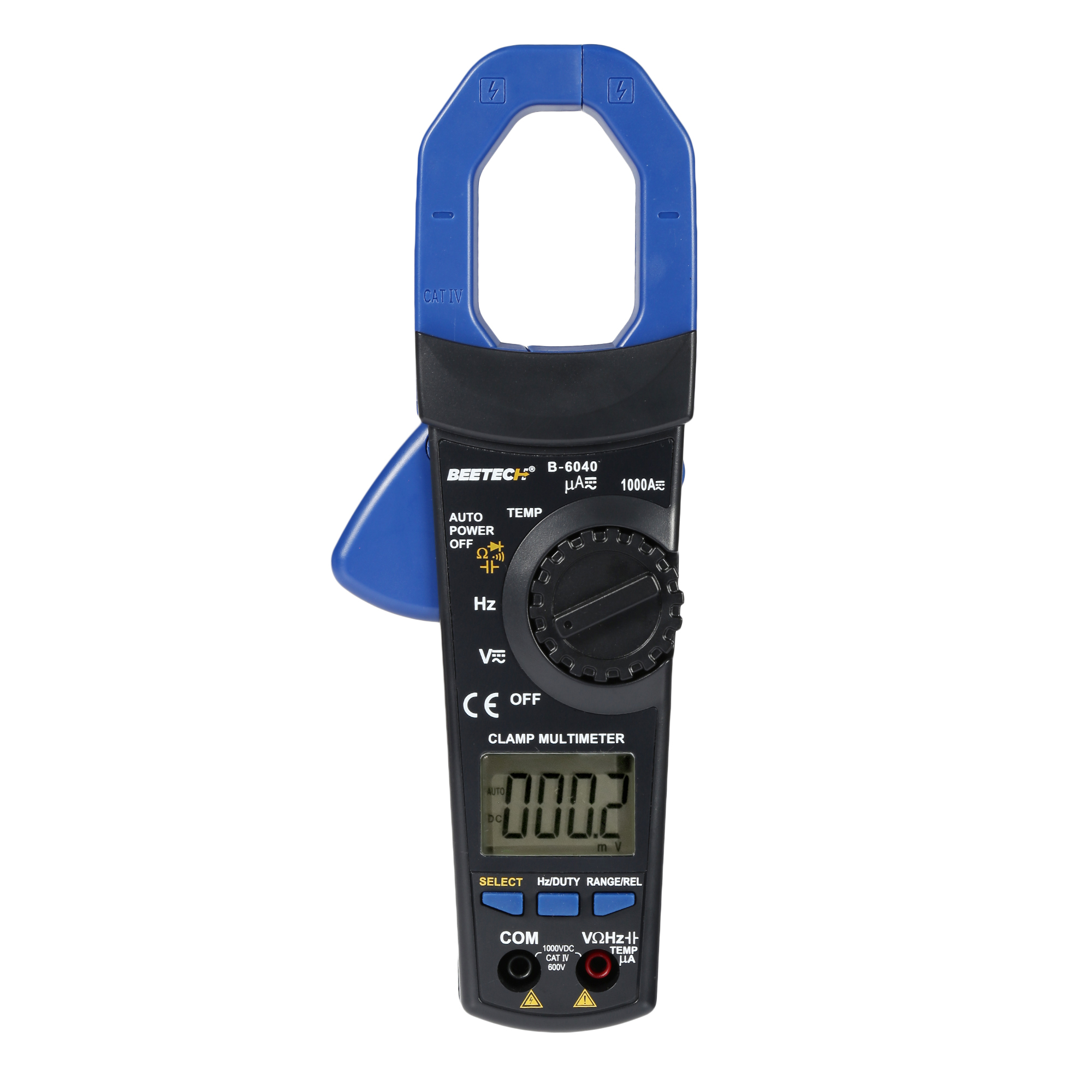

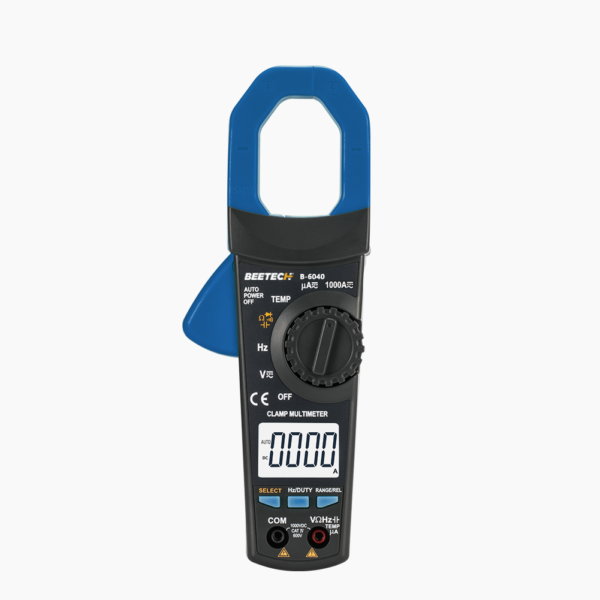

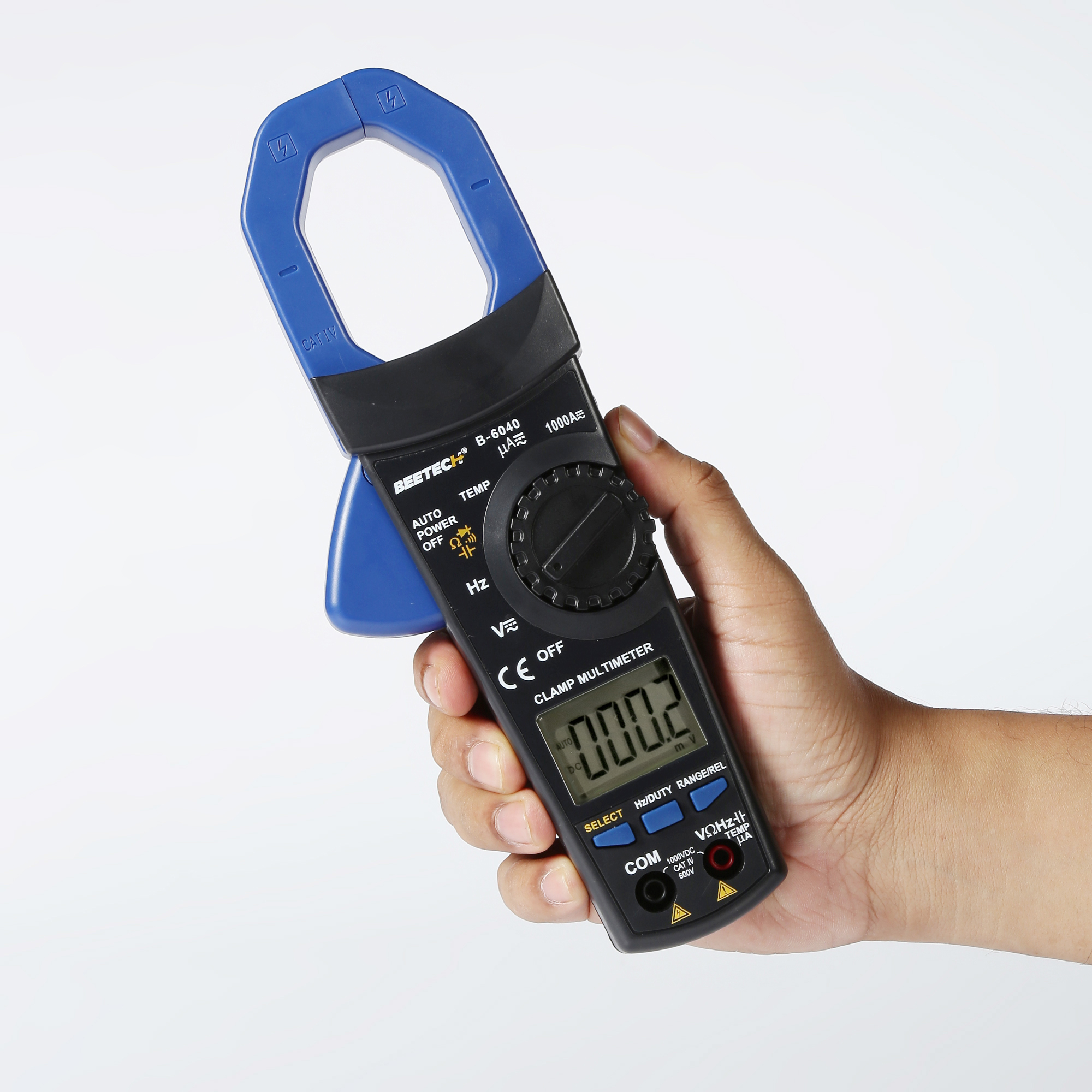

BEETECH AC/DC CLAMPMETER B-6040
BEETECH AC/DC CLAMPMETER B-6040 - Image 2
BEETECH AC/DC CLAMPMETER B-6040 - Image 3
BEETECH AC/DC CLAMPMETER B-6040 - Image 4
BEETECH AC/DC CLAMPMETER B-6040 - Image 5
BEETECH AC/DC CLAMPMETER B-6040 - Image 6

BEETECH AC/DC CLAMPMETER B-6040

Important Specification

1. DC VOLTAGE

Range : 600mV – 1000V

Accuracy : ±(0.5% + 3 digits) / ±(0.8% + 2 digits)

Resolution : 0.1mV – 1V

Input Impendence

About 10 MΩ

Overload protection

200mV Range : 550VDC or AC Peak Value

Other ranges : 1000V DC or AC 750V peak value

2. AC VOLTAGE (TRMS)

Range : 600mV – 750V

Accuracy : ±(0.8% + 5 digits) / ±(1.2% + 2 digits)

Resolution : 0.1mV – 1V

Input Impendence

About 10 MΩ

Standard sine wave and triangular wave

40Hz–1KHz

Other wave form

40Hz–200Hz

3. DC CURRENT

Range : 600µA – 1000A

Accuracy : ±(0.8% + 10 digits) / ±(2% + 30 digits)

Resolution : 0.1µA – 1A

Maximum measurement voltage drop

600mV

Overload protection

600µA/6000µA , 0.6A/250V resettable fuse

Positive input terminal

VΩ

Negative input terminal

COM

4. AC CURRENT

Range : 600µA – 1000A

Accuracy : ±(0.8% + 10 digits) / ±(2% + 30 digits)

Resolution : 0.1µA – 1A

Maximum measurement voltage drop

600mV

Overload protection

600µA/6000µA , 0.6A/250V resettable fuse

Positive input terminal

VΩ

Negative input terminal

COM

Standard sine wave and triangular wave

40Hz–1KHz

Other waveform

40Hz–200Hz

5.RESISTANCE

Range : 600Ω – 60MΩ

Accuracy : ±(0.8% + 5d) / ±(0.8% + 3d) / ±(1% + 25d)

Resolution : 0.1Ω – 10kΩ

Overload protection

550V DC or AC peak value

6. FREQUENCY

Range : 10Hz – 20Mhz

Accuracy : ±(0.1% + 3d)

Resolution : 0.01Hz – 10kHz

Overload protection

550V DC or AC peak (<10s)

Input sensitivity RMS

Effective value 1V

7. CAPACITANCE

Range : 60nF- 6000uF

Accuracy : ±(3.5%+20d) / ±(5%+10d)

Resolution : 10pF – 1uF

Overload Protection

550V DC or AC peak value

8. TEMPERATURE

Range : (-50~1000)°C / (0~1832)°F

Resolution : 1°C/ 1°F

Accuracy : ±( 1% + 5) <400°C / ±(0.75% + 5) <750°F

Product Details

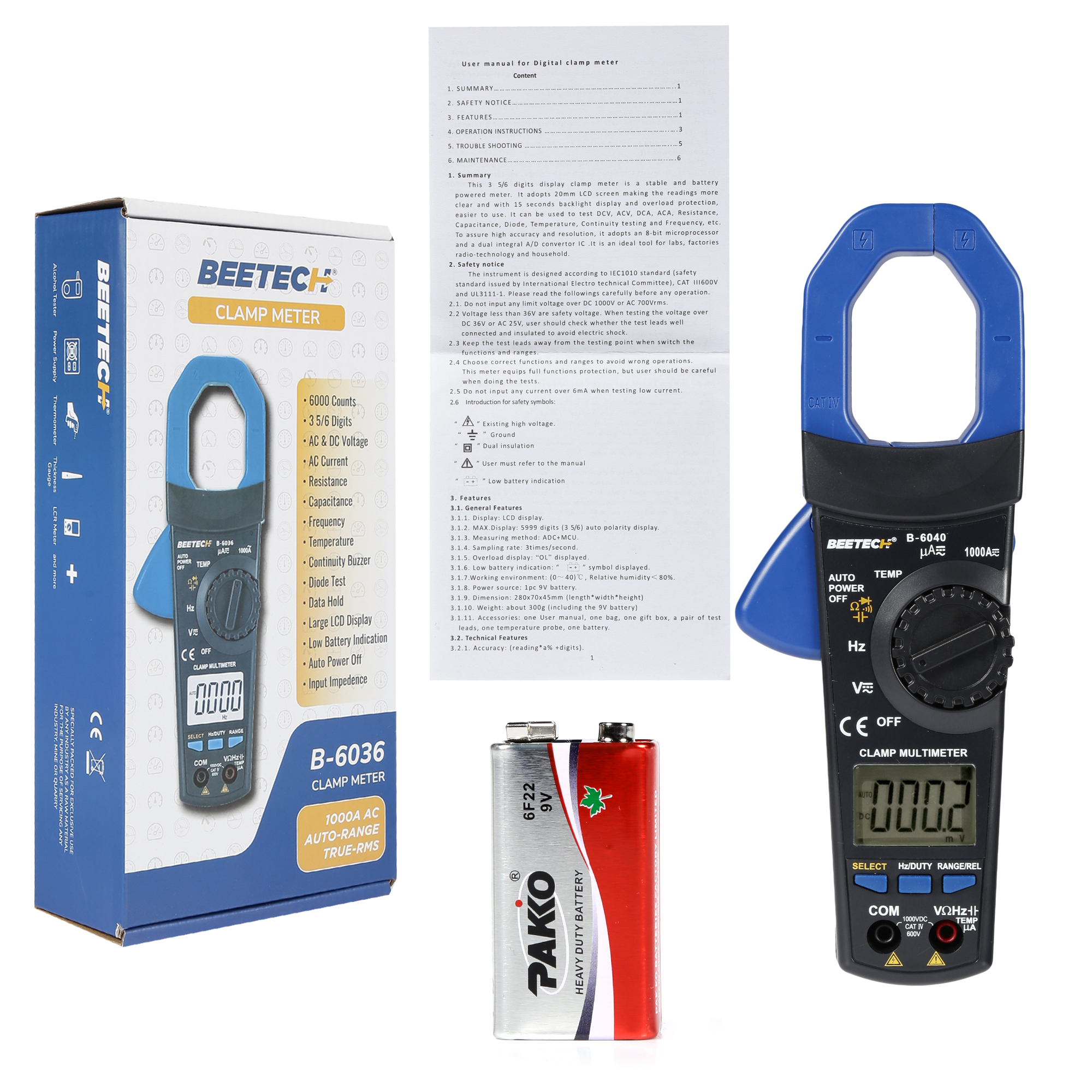

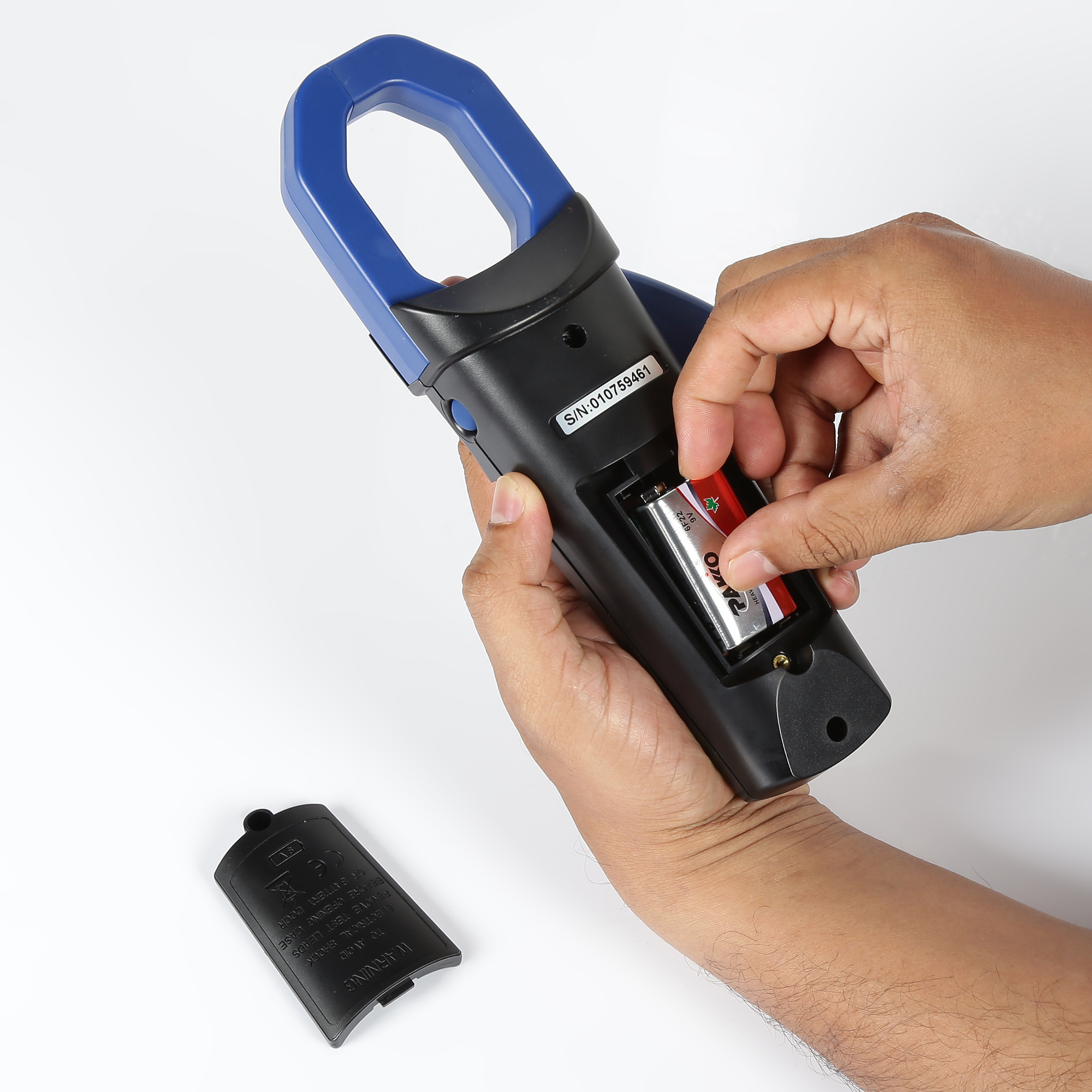

This 3 5/6 digits display and 6000 counts Clampmeter is a stable and battery powered meter. It adopts 20mm LCD screen making the readings clear and with 15 seconds backlit display and overload protection, it is easier to use. It can be used to test DC voltage, AC voltage, DC current, AC current, resistance, capacitance, diode, temperature, continuity and frequency. To assure high accuracy and resolution, it adopts a 8-bit micro-processor and a dual integral A/D convertor IC. It is an ideal tool for industries, radio technology, educational institutions, electricians, engineers, technicians, manufacturers, and for household use. This product comes with one user manual, Carrying pouch, a pair of test leads, one temperature probe and one 9V battery.

See More Product Details Show Less
Buy Now
Know More
Download
Contact
Product information
SPECIFICATIONS

1. DC VOLTAGE

Range : 600mV – 1000V

Accuracy : ±(0.5% + 3 digits) / ±(0.8% + 2 digits)

Resolution : 0.1mV – 1V

Input Impendence

About 10 MΩ

Overload protection

200mV Range : 550VDC or AC Peak Value

Other ranges : 1000V DC or AC 750V peak value

2. AC VOLTAGE (TRMS)

Range : 600mV – 750V

Accuracy : ±(0.8% + 5 digits) / ±(1.2% + 2 digits)

Resolution : 0.1mV – 1V

Input Impendence

About 10 MΩ

Standard sine wave and triangular wave

40Hz–1KHz

Other wave form

40Hz–200Hz

3. DC CURRENT

Range : 600µA – 1000A

Accuracy : ±(0.8% + 10 digits) / ±(2% + 30 digits)

Resolution : 0.1µA – 1A

Maximum measurement voltage drop

600mV

Overload protection

600µA/6000µA , 0.6A/250V resettable fuse

Positive input terminal

VΩ

Negative input terminal

COM

4. AC CURRENT

Range : 600µA – 1000A

Accuracy : ±(0.8% + 10 digits) / ±(2% + 30 digits)

Resolution : 0.1µA – 1A

Maximum measurement voltage drop

600mV

Overload protection

600µA/6000µA , 0.6A/250V resettable fuse

Positive input terminal

VΩ

Negative input terminal

COM

Standard sine wave and triangular wave

40Hz–1KHz

Other waveform

40Hz–200Hz

5.RESISTANCE

Range : 600Ω – 60MΩ

Accuracy : ±(0.8% + 5d) / ±(0.8% + 3d) / ±(1% + 25d)

Resolution : 0.1Ω – 10kΩ

Overload protection

550V DC or AC peak value

6. FREQUENCY

Range : 10Hz – 20Mhz

Accuracy : ±(0.1% + 3d)

Resolution : 0.01Hz – 10kHz

Overload protection

550V DC or AC peak (<10s)

Input sensitivity RMS

Effective value 1V

7. CAPACITANCE

Range : 60nF- 6000uF

Accuracy : ±(3.5%+20d) / ±(5%+10d)

Resolution : 10pF – 1uF

Overload Protection

550V DC or AC peak value

8. TEMPERATURE

Range : (-50~1000)°C / (0~1832)°F

Resolution : 1°C/ 1°F

Accuracy : ±( 1% + 5) <400°C / ±(0.75% + 5) <750°F

Brand‎Hty
Power Source‎Battery Powered
Style‎Clamp Meter
Item Weight‎190 Grams
Item dimensions L x W x H‎20 x 8 x 4.5 Centimeters
Specification Met‎CE, RoHS
Measurement Type‎Clamp Meter, Multimeter
Manufacturer‎SHREYANS ENTERPRISES, 002, 9th Avenue Business Park, Chamrajpet 5th Main Road, Bangalore, India
Country of Origin‎India
Model number‎B-6010
Number of Memory Sticks‎6010
Item Weight‎190 g
Product Dimensions‎20 x 8 x 4.5 cm; 190 g
Item model number‎B-6010
Item Height‎4.5 Centimeters
Item Width‎8 Centimeters
Included Components‎Clampmeter and Testing Leads with Manual User guide
FEATURES

• Display: LCD

• 6000 Counts

• 3 5/6 Digits

• AC & DC Voltage

• AC & DC Current

• Sampling rate 3 times

• Wide Jaw Size

• True-RMS

• Resistance

• Capacitance

• Frequency

• Temperature

• Auto Negative polarity indication: Displaying “-”

• Continuity Buzzer

• Duty Cycle

• Data Hold

• Diode Test

• Large LCD Display

• Low Battery Indication

• Auto Power Off

Read More Show Less
ASINB0DK745NLM
Best Sellers Rank#54,749 in Industrial & Scientific (See Top 100 in Industrial & Scientific)
#172 in Clamp Meters
Date First Available17 October 2024
ManufacturerSHREYANS ENTERPRISES, 002, 9th Avenue Business Park, Chamrajpet 5th Main Road, Bangalore, India
PackeravsCARTindia New Delhi-110007, Email: avsenterprises16@gmail.com
Item Dimensions LxWxH20 x 8 x 4.5 Centimeters
Net Quantity1 Set
Generic NameCLAMP METER
ABOUT THE PRODUCT
