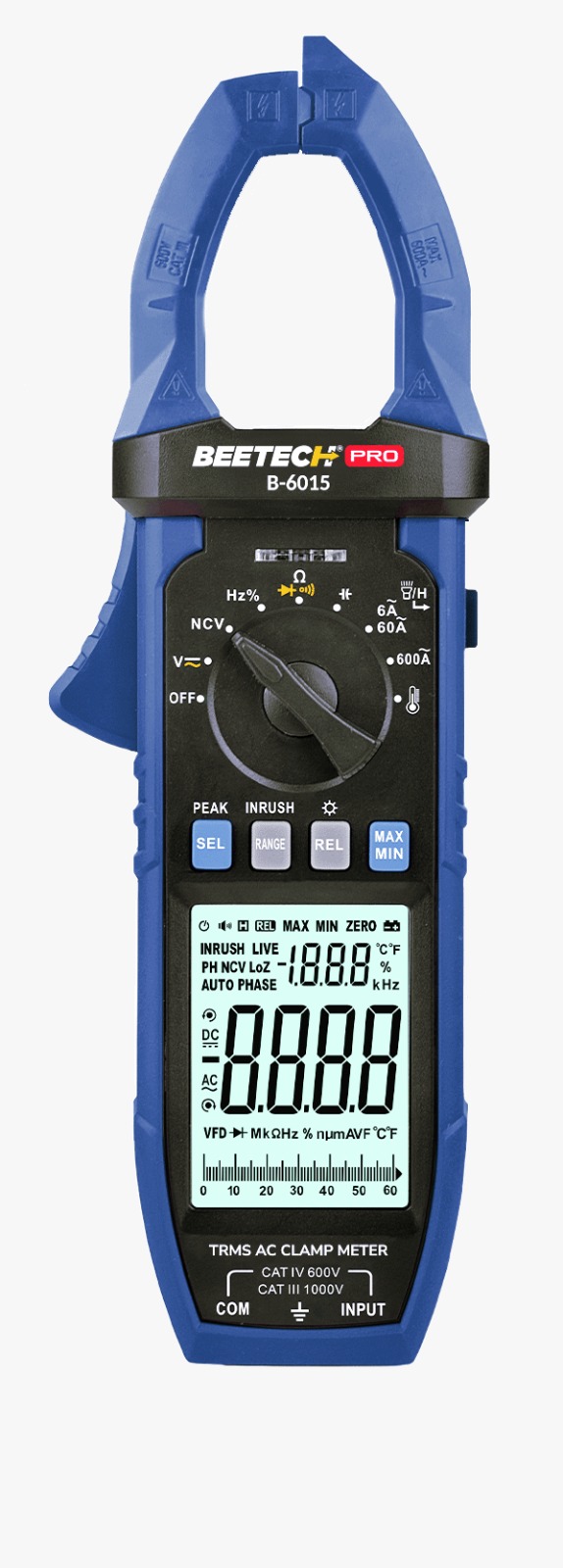

BEETECH AC CLAMPMETER B-6015 PRO

Important Specification

1. AC VOLTAGE (ACV)

Range : 600mV – 1000V

Accuracy : ±(1.0% ±3d) / ±(1.0% ±5d)

Resolution : 0.1mV – 1V

Input Impedance

10M Ohms

Overload Protection

1000VDC/1000VAC RMS

ACV Frequency range

40Hz-1000Hz

Display

True RMS

2. DC VOLTAGE (DCV)

Range : 600mV – 1000V

Accuracy : ±(0.5% ±3d) / ±(0.8% ±5d)

Resolution : 0.1mV – 1V

Input Impedance

10M Ohms

Overload Protection

1000VDC/1000VAC RMS

ACV Frequency range

40Hz-1000Hz

Display

True RMS

3. AC CURRENT (ACA)

Range : 6A – 600A

Accuracy : ±(2.5% ± 10 d)

Resolution : 0.001A – 0.1A

Frequency Response

TRMS 50Hz–60Hz

4. RESISTANCE (Ω)

Range : 600Ω – 60MΩ

Accuracy : ±(1.0% ±5 d) / ±(1.0% ±2 d) / ±(1.2% ±8 d)

Resolution : 0.1Ω – 0.01MΩ

Overload Protection

250VDC or 250VAC RMS

5. CAPACITANCE

Range : 60nF- 100mF

Accuracy : ±(4.0% ±25 d) / ±(4.0% ±15 d) / ±(5.0% ±25 d)

Resolution : 0.01nF – 0.1mF

Overload Protection

250VDC or 250VAC RMS

NCV

ACV > 60V-1000V/50Hz-60Hz

Live Wire

AC V>80V-250V/ 50Hz to 60Hz

6. FREQUENCY (Hz)

Range : 10Hz – 10MHz

Accuracy : ±(0.5% ± 4 d)

Resolution : 0.01Hz – 0.01MHz

Overload Protection

250VDC or 250VAC RMS

7. TEMPERATURE

Range : -20°~ 1000°C / -4° ~1832°F

8. DIODE & CONTINUITY

BUZZER : Built-in buzzer will beep if Resistance is less than 50Ω± 30 Ω

DIODE : Display approximate forward voltage of diode.

Product Details

BEETECH B-6015 PRO is TRMS Clamp meter measuring 600A AC Current, 1000V AC/DC Voltage, Temperature, Frequency, Capacitance, Resistance, NCV, Diode test & more. It is designed and conforms to IEC-61010-1 and IEC-61010-2-032 with safety rating of CAT IV 600V and CAT III 1000V. It features a 34mm clamp jaw and a robust design for heavy duty and everyday use.

See More Product Details

Product information

SPECIFICATIONS

1. AC VOLTAGE (ACV)

Range : 600mV – 1000V

Accuracy : ±(1.0% ±3d) / ±(1.0% ±5d)

Resolution : 0.1mV – 1V

Input Impedance

10M Ohms

Overload Protection

1000VDC/1000VAC RMS

ACV Frequency range

40Hz-1000Hz

Display

True RMS

2. DC VOLTAGE (DCV)

Range : 600mV – 1000V

Accuracy : ±(0.5% ±3d) / ±(0.8% ±5d)

Resolution : 0.1mV – 1V

Input Impedance

10M Ohms

Overload Protection

1000VDC/1000VAC RMS

ACV Frequency range

40Hz-1000Hz

Display

True RMS

3. AC CURRENT (ACA)

Range : 6A – 600A

Accuracy : ±(2.5% ± 10 d)

Resolution : 0.001A – 0.1A

Frequency Response

TRMS 50Hz–60Hz

4. RESISTANCE (Ω)

Range : 600Ω – 60MΩ

Accuracy : ±(1.0% ±5 d) / ±(1.0% ±2 d) / ±(1.2% ±8 d)

Resolution : 0.1Ω – 0.01MΩ

Overload Protection

250VDC or 250VAC RMS

5. CAPACITANCE

Range : 60nF- 100mF

Accuracy : ±(4.0% ±25 d) / ±(4.0% ±15 d) / ±(5.0% ±25 d)

Resolution : 0.01nF – 0.1mF

Overload Protection

250VDC or 250VAC RMS

NCV

ACV > 60V-1000V/50Hz-60Hz

Live Wire

AC V>80V-250V/ 50Hz to 60Hz

6. FREQUENCY (Hz)

Range : 10Hz – 10MHz

Accuracy : ±(0.5% ± 4 d)

Resolution : 0.01Hz – 0.01MHz

Overload Protection

250VDC or 250VAC RMS

7. TEMPERATURE

Range : -20°~ 1000°C / -4° ~1832°F

8. DIODE & CONTINUITY

BUZZER : Built-in buzzer will beep if Resistance is less than 50Ω± 30 Ω

DIODE : Display approximate forward voltage of diode.

Brand

‎Hty

Power Source

‎Battery Powered

Style

‎Clamp Meter

Item Weight

‎190 Grams

Item dimensions L x W x H

‎20 x 8 x 4.5 Centimeters

Specification Met

‎CE, RoHS

Measurement Type

‎Clamp Meter, Multimeter

Manufacturer

‎SHREYANS ENTERPRISES, 002, 9th Avenue Business Park, Chamrajpet 5th Main Road, Bangalore, India

Country of Origin

‎India

Model number

‎B-6010

Number of Memory Sticks

‎6010

Item Weight

‎190 g

Product Dimensions

‎20 x 8 x 4.5 cm; 190 g

Item model number

‎B-6010

Item Height

‎4.5 Centimeters

Item Width

‎8 Centimeters

Included Components

‎Clampmeter and Testing Leads with Manual User guide

FEATURES

• Display 6000 counts

• LCD Backlight

• Data Hold

• NCV & LIVE Test

• Relativity Function

• TRMS

• Auto Ranging

• Bar display

• Range selection Auto

• Over Range Displays “OL”

• Input Polarity Displays negative“-”

• Jaw opening 34mm

• Conductor size 30mm

• Dimension 220(L) x 75(W) x 40(H)

• Weight 290g(including battery)

• Measuring Principal Double Integral A/D Conversion

• Sampling rate About 2 times / second

• Overload Protection
